WM100 Camera sensor board
Function
Variants
Parts
Programming
External interfaces
Service interfaces
Board view
Schematics
The Camera sensor board contains a 12MPx CMOS sensor.
The known variants have only minor differences.
| Marking | Overview |
|---|---|
| K1709D2.3 |
| Marking | Amt. | Pkg. | Function | Specification |
|---|---|---|---|---|
| IMX377 | 1 | 98-pin ceramic | Diagonal 7.81 mm (Type 1/2.3) CMOS Image Sensor with Square Pixel for Color Cameras with 12.35 M effective pixels and 12-bit digital output | description |
No programmable components exist on the board.
| Marking | Overview |
|---|---|
| TODO |
The following service pads exist on this board:
| Marking | Overview |
|---|---|
| TODO |

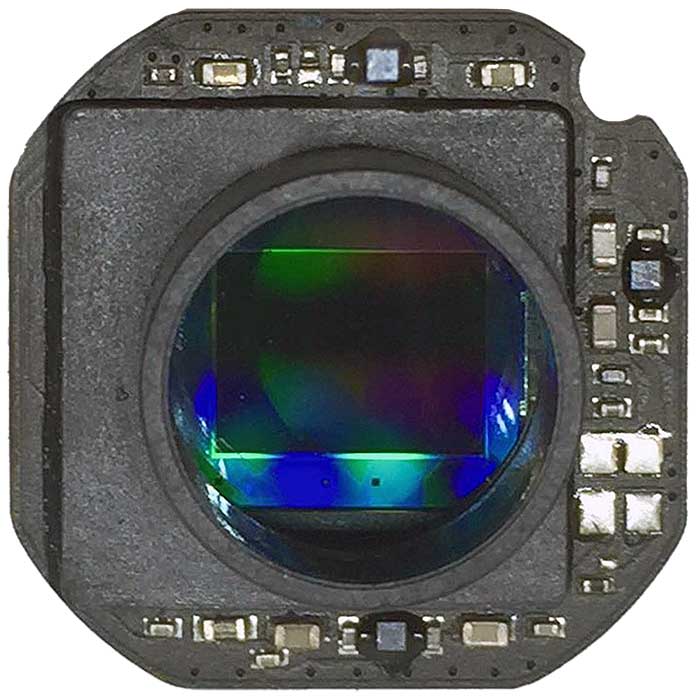

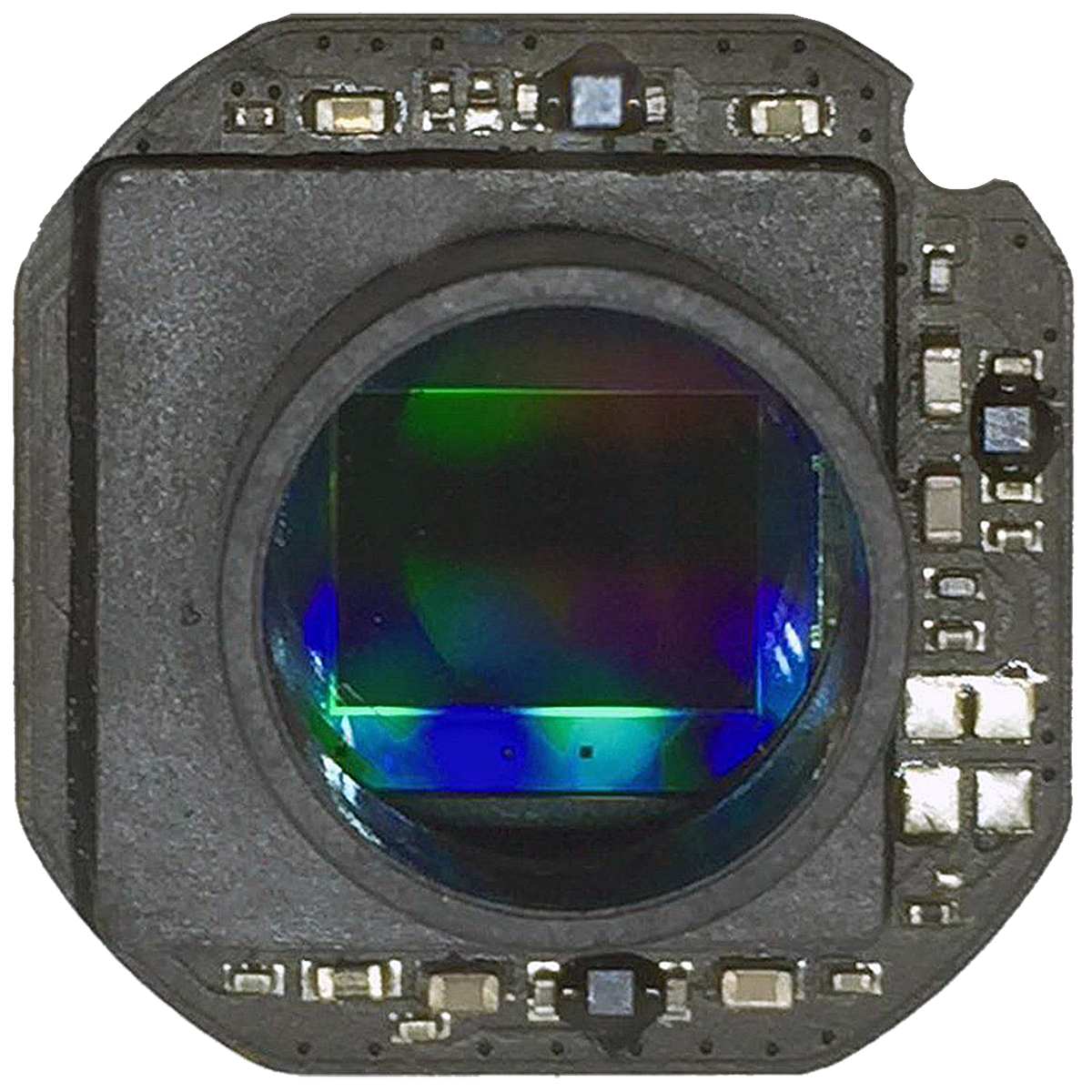

Top of the K1709D2.3 board:

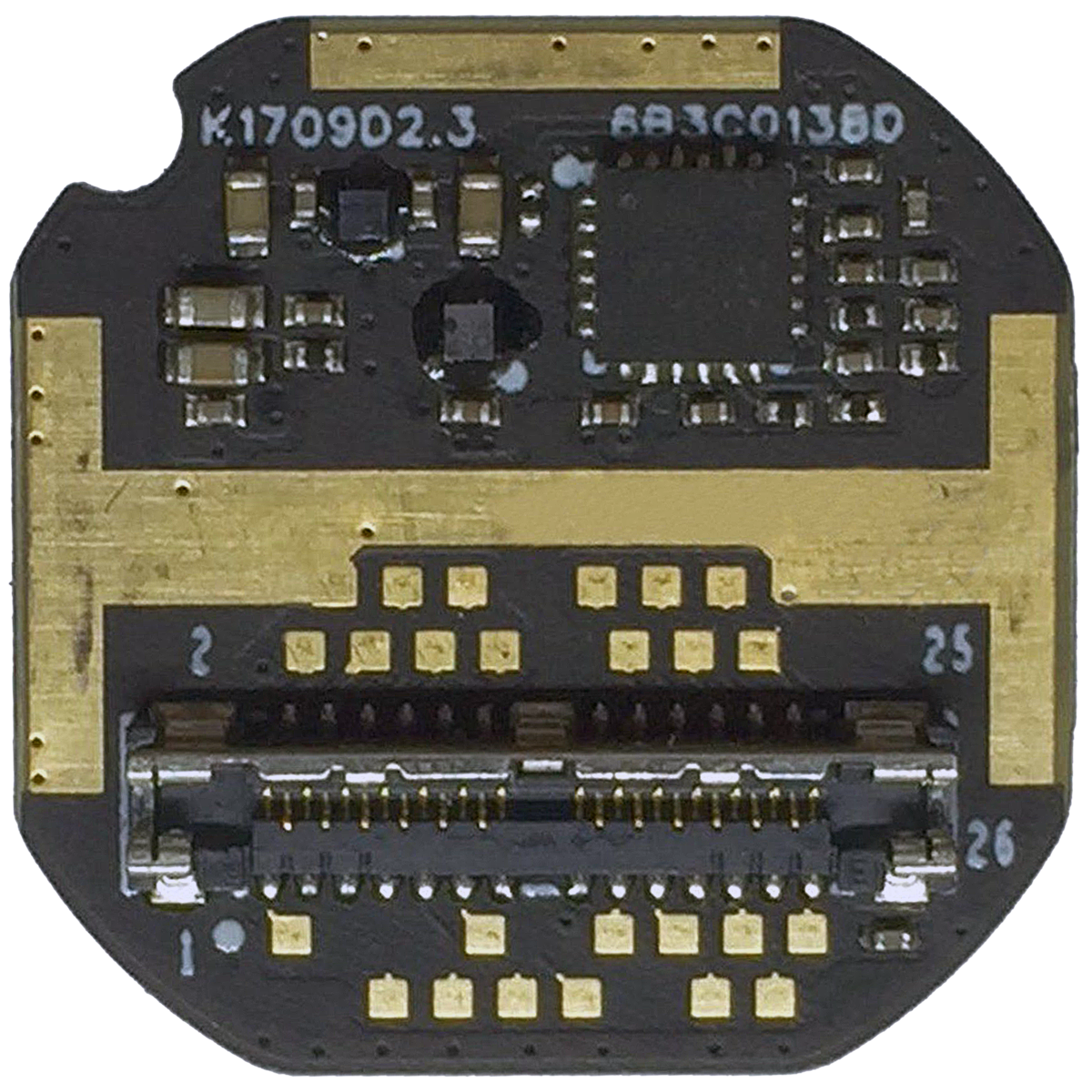

Bottom of the K1709D2.3 board:
No schematics available.
